Products

Contact us for quality hexagonal wire netting products and machinery, and discuss your specific requirements.

Stainless Steel Hexagonal Wire Netting Mesh SS304, SS 316, 410

Hexagonal stainless steel (SS) wire mesh is a twisted woven hexagonal mesh fabric made of high-quality stainless steel wire 304 or 316. SS hex mesh features a robust structure, excellent corrosion resistance and durable uses. Stainless hexagonal mesh netting is commonly used in aviaries, poultry fencing, garden netting, animal enclosures, also in construction and reinforcing uses.

Our Capability

  • Materials
    Stainless steel hexagonal wire netting is made from various grades of stainless steel: T 304, 316, 304L and 316L.
  • Mesh Size
    1/2 inch (12.7mm), 1 inch (25.4mm), 1.5 inches (38.1mm), and 2 inches (50.8mm).
  • Hole Type
    Hexagon.
  • Wire Gauge
    20 gauge (0.9mm) to 14 gauge (2.0mm)
  • Roll Size
    Stainless steel hexagonal wire netting is commonly available in standard roll widths of 3 feet (914mm), 4 feet (1219mm), and 5 feet (1524mm), roll lengths of 100 feet (30.48 m) per roll. Custom sizes can also be produced to meet specific project needs.
  • Weaving
    Common weaving methods are straight twist, reverse twist, and double twist.
  • Surface Treatments
    Plain stainless steel finish, electro-polishing, and powder coating.

SS Hexagonal Netting Products

Stainless Steel Hexagonal Mesh Netting for Rock Netting System, Export to Poland

  • Stainless Steel Hexagonal Wire Netting
    Dimensions: 72 inches in width and 150 feet in length per roll
    Mesh size: 1 inch
    Material: Stainless steel
  • Stainless Steel Wire Rope
    Diameter: 1/4 inch
    Length: 5000 feet per roll
    Material: Stainless steel
  • Wire Rope Clips
    Material: Stainless steel

Stainless Steel Hexagonal Wire Mesh Export to Bulgaria

  • Material: Stainless steel 316
  • Type: Hexagonal chicken wire
  • Width: 1 meter
  • Mesh size: 1 inch (25 mm) apart
  • Wire gauge: BWG 19
  • Length: 2000 m
  • Edge wires: Double top and bottom wires, 0.63 mm in diameter
  • Double top and bottom edge wires for enhanced strength and stability of wire mesh.

Hexagonal Mesh (SS 304 and AISI 410S) Export to Hungary

  • Stainless Steel 304 (SS 304)
    25 mm hexagonal opening, 14 gauge (2 mm), 90 kg
    19 mm hexagonal opening, 14 gauge (2 mm), 80 kg
  • AISI 410S
    25 mm hexagonal opening, 14 gauge (2 mm), 60 kg
    19 mm hexagonal opening, 14 gauge (2 mm), 80 kg

Stainless Steel Hex Mesh to Egypt

  • Hex Mesh Size: 3/4″ (19.05 mm) x 14 GA (2.03 mm)
    Hex Opening Size: 3/4 inch (19.05 mm)
    Gauge: 14 GA (2.03 mm)
    Material: Stainless Steel SS304H
    Dimensions: 36 inches (914.4 mm) x 40 inches (1016 mm)
  • Hex Mesh 1/2 inch (12.7 mm)
  • Hex Opening Size: 1/2 inch (12.7 mm)
    Available Heights: 3 feet (914.4 mm) and 6 feet (1828.8 mm)
    Hex Mesh 1/4 inch (6.35 mm)
  • Hex Opening Size: 1/4 inch (6.35 mm)

Stainless Steel Hexagonal Wire Mesh to Sri Lanka

  • Mesh Type: 3/4″ (19.05 mm) hexagonal stainless steel wire mesh
  • Gauge: 19 gauge (1 mm)
  • Roll Sizes:
    3 feet (914.4 mm) x 100 feet (30.48 m)
    4 feet (1219.2 mm) x 100 feet (30.48 m)
    5 feet (1524 mm) x 100 feet (30.48 m)
    6 feet (1828.8 mm) x 100 feet (30.48 m)
  • Mesh Sizes:
    1/4 inch (6.35 mm)
    1/2 inch (12.7 mm)
    3/4 inch (19.05 mm)
    1 inch (25.4 mm)
    1-1/2 inch (38.1 mm)
    2 inch (50.8 mm)

Wire Mesh Material Specifications for Pakistan

  • Material: SS 304
    Mesh Pattern: Hexagonal
    Pattern Size: 1 inch (25 mm)
    Wire Diameter: AWG No. 18 [1.02 mm (0.040 inches)]
    Dimensions: 1200 mm Width x 12 Meter
  • Material: SS 304
    Mesh Pattern: Hexagonal
    Pattern Size: 1 inch (25 mm)
    Wire Diameter: AWG No. 20 to 22 [0.82 mm to 0.64 mm (0.032 inches to 0.0253 inches)]
    Dimensions: 1200 mm Width x 12 Meter

Wire Mesh SS 316 EN Standard

  • Material: SS 316
  • Structure: Hexagonal Pattern
  • Mesh Size: 1 inch (25 mm)
  • Wire Diameter: Minimum 0.6 mm (23 GA)
  • Certificate Type: EN 10204 3.1

72″ Wide Stainless Steel Hex Chicken Wire for USA

  • Width: 72 inches (1829 mm)
  • Length: 100 feet (30.48 m)
  • Mesh Size: ¾ inch (19 mm) or 1 inch (25 mm)

Stainless Steel Hexagonal Wire Shipping to the United States

  • Purpose: For aviary netting
  • Mesh Sizes:
    1/2 inch (12.7 mm)
    3/8 inch (10 mm)
  • Material: Stainless Steel 304

Stainless Steel Hexagonal Wire Mesh for UAE

  • Wire Mesh 25 mm x 60 mm x 3 mm
    Mesh Aperture (25 mm)
    Wire Mesh Width (60 mm)
    Wire Diameter (3 mm)
  • Roll Dimension: 2 meter width x 10 meter length
  • Unit Weight: 60 kg per roll
Stainless Steel Twisted Woven Hexagonal Mesh Netting 1 inch mesh x 20 gauge

Material: Stainless Steel
Mesh Size: 1 inch (25 mm)
Wire Diameter: 0.8 mm (20 GA)
Weaving: Double twisted
Common Uses: Fencing, poultry netting, and industrial applications.
Features: Corrosion-resistant, high strength, and durability

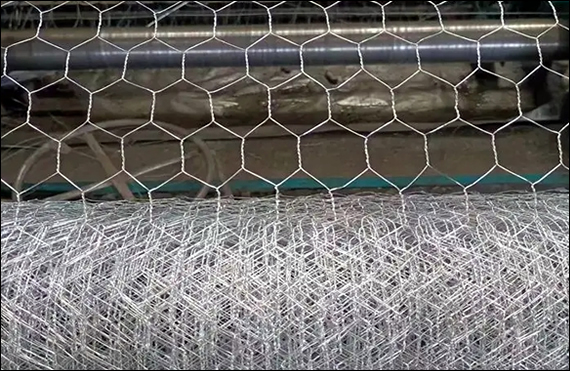

SS 316 Hexagonal Wire Netting

Material: SS 316
Mesh Size: 1/2 inch (13 mm)
Wire Diameter: 1.0 mm (19 GA)
Common Uses: Chemical industry, and high-corrosion marine areas

SS 304 Hexagonal Wire Netting for Aviary Netting

Material: SS 304
Mesh Size: 3/4 inch (19 mm)
Wire Diameter: 0.9 mm (20 GA)
Common Uses: Aviaries, enclosures, general fencing
