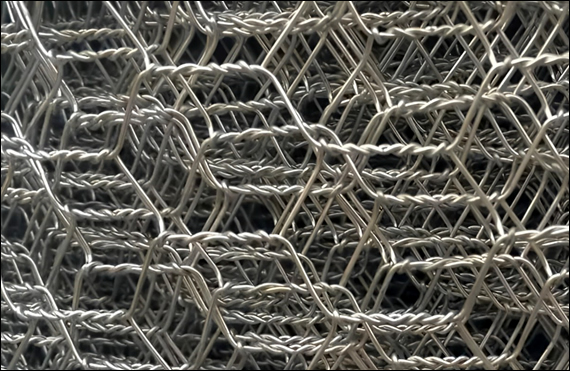

Reverse twist hexagonal mesh is metal wire fabric woven with steel wire twisted in opposite direction to form a hexagonal pattern mesh. Wire mesh reverse twisted enjoys better flexibility over normal straight twist hexagonal mesh. This unique woven wire mesh offers excellent overall strength and stability, can withstand higher stress and pressure without deforming. Edge reinforcement available for reverse twisted wire mesh to maintain the overall integrity.
Application:Reverse twisted woven hexagonal mesh is widely used in aquaculture and agriculture, highway fencing, construction of corrosion control retaining wall and various civil engineering works.
Our Capability
Materials
Material:
Mild steel wire galvanized
Galfan coated wire
PVC coated wire
Stainless steel wire
Weaving type:
Reverse twist
Mesh sizes: 1 inch (25.4 mm), 2 inch (50.8 mm), and 3 inch (76.2 mm).
Wire diameter: 1 mm to 7.2 mm.
Roll Dimensions
Standard roll width: 1 m (3.28 feet) and 1.2 m (3.94 feet)
Roll length: 25 m (82 feet) and 50 m (164 feet).
Customized Products Available
Reverse Woven Hexagonal Wire Mesh can be customized into different specifications and colours to meet specific requirements.
Reverse twist hexagonal mesh can be made in customized sizes to meet specific project needs.
Custom mesh sizes can be as small as 0.5 inch (12.7 mm) , larger openings up to 4 inches (101.6 mm).
Wire diameters can be adjusted from finer 0.4 mm wires for light type uses, to thicker 4 mm wires for heavy-duty use.
Custom Roll Sizes: Roll width can be 2 m (6.56 feet) and length can be 100 m (328 feet).
Wire mesh can be powder coated into dark green, black and other colors.
Mesh types according to applications:
Protection fences;
Slope protection gabion baskets and mattress;
Breeding fences;
Construction reinforcing mesh;
Power plant pipe insulation mesh;
Crab netting and fish netting;
Others.
Twist Weaving Process and Features
Reverse twist hexagonal mesh is constructed by a twisting process where pairs of wires are twisted in opposite directions to form a continuous hexagonal mesh. The opposing twists lock the wires securely in place, providing greater resistance to deformation and enhancing durability. The reverse twisting ensures uniform and consistent mesh openings, essential for precise applications. Despite its strength, the mesh remains flexible, allowing it to conform to various shapes and surfaces, making it versatile for use in different environments, such as irregular terrain or curved structures. Standard mesh sizes include 1 inch (25.4 mm), 2 inch (50.8 mm), and 3 inch (76.2 mm) openings.
Edge Reinforcement
Edges of reverse twisted woven hexgonal mesh are reinforced with selvedge wires. Edge wires have a larger diameter, usually equal to or greater than 3.4 mm, and are twisted along the edges of wire mesh to prevent unraveling and to provide additional strength.
Reverse Twist Woven Wire Netting Products
Reverse Twist Wire Netting Zinc Galvanized
Specification:
Reverse-twist Wire Netting
Wire diameter range: from 6.9 mm. to 7.2 mm.
Finish: Hot Dipped Galvanized (zinc coated)
Aperture: 13mm.
Netting width: up to 1800 mm.
Netting woven type: reverse-twist.
Galvanized Mesh Reverse Twist Woven
Hole: Hexagonal Type
Finish: Hot dip galvanized
Tensile Strength: 350 – 500 N/sq mm
Wire Diameter and Tolerance:
Wire diameter: 1.2mm
Mesh: 1 inch (2.5cm)
Roll Size: Netting width 1m x Length 25 m
Hexagonal Wire Netting Reverse Woven 2m Roll Width
Wire diameter: 19 Gauge, 21 Gauge, 23 Gauge
Roll size: Netting width 1m x Length 36 m
Finish: Galvanized
PVC Coated Hexagon Wire Netting Reverse Twist
Type: PVC Coated Galvanized Mesh
Woven type: Reverse Twist
Hole: Hexagonal Type
Tensile Strength: 350 – 500 N/sq mm
Wire Diameter and Tolerance
- Core diameter: 1mm or 1.2mm
- Final diameter: 1.5mm
- Mesh: 1.25 inch (3cm)
- Roll size: 25m x 1m
PVC Coated Galfan Galvanized Mesh Reverse Twist Woven
Finish: PVC Coated galfan coated wire mesh
Mesh: 6cm
Reinforced with edge wire
Weaving: Reverse twisted
Galvanized hex. wire netting in reverse twist (width of 0.5M-2.0M) | ||||
Mesh | Wire Gauge(BWG) | Reinforcement | ||
Inch | mm | (BWG) | Width(ft) | Strand |
1″ | 25mm | 22,21,20,18 | 2′ | 1 |
1-1/4″ | 32mm | 22,21,20,18 | 3′ | 2 |
1-1/2″ | 40mm | 20,19,18 | 4′ | 3 |
2″ | 50mm | 20,19,18 | 5′ | 4 |
3″ | 75mm | 20,19,18 | 6′ | 5 |
