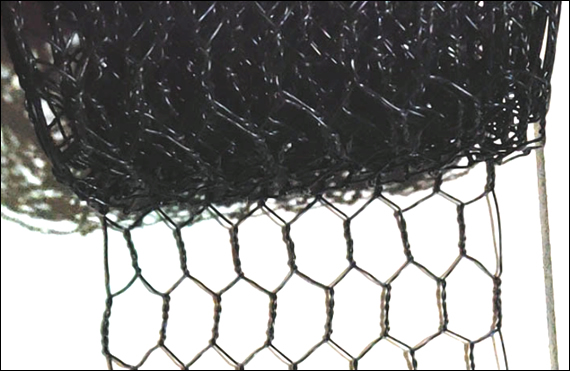

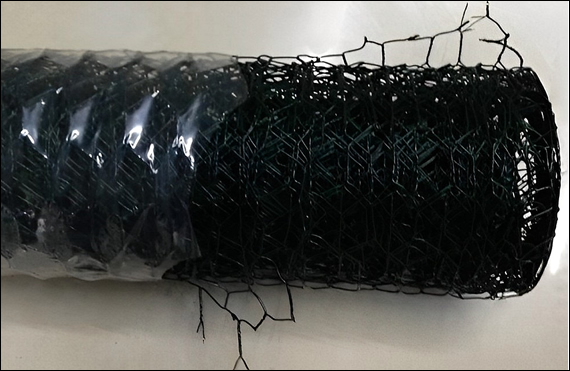

Black vinyl-coated chicken wire has a protective powder coating offering superior durability and rust resistance, especially in harsh weather conditions. This versatile fencing mesh is mainly used for constructing long-lasting enclosures for poultry, protecting gardens and supporting climbing plants. Black vinyl-coated chicken wire features strength, durability and pleasing outlook, suitable for various fencing applications.
Our Capability
Wire Gauge
19 Gauge (1.02 mm)
18 Gauge (1.07 mm)
16 Gauge (1.30 mm)
15 Gauge (1.45 mm)
14 Gauge (1.63 mm)
13 Gauge (1.83 mm)
Mesh Size
1/2 inch (12.7 mm)
3/4 inch (19.05 mm)
1 inch (25.4 mm)
1 1/4 inch (31.75 mm)
1 1/2 inch (38.1 mm)
2 inches (50.8 mm)
Mesh Roll Length and Width
Black vinyl-coated chicken wire typically supplied in pre-cut rolls of varying lengths and widths:
- 25 feet (7.62 m)
- 50 feet (15.24 m)
- 100 feet (30.48 m)
- 125 feet (38.10 m)
- 150 feet (45.72 m)
- 200 feet (60.96 m)
Roll widths range:
- 24 inches (61 cm)
- 36 inches (91 cm)
- 48 inches (122 cm)
- 60 inches (152 cm)
- 72 inches (183 cm)
- 84 inches (213 cm)
Customized Product Available
We provide customized options for specific project needs:
- Custom roll lengths
- Cut-to-size panels
Black Vinyl Coated Chicken Hex Netting 19 Gauge for USA
Chicken hex netting, available in 19 AWG or 20 BWG steel wire with 3/4″ hexagonal mesh for poultry sheds and housing.
a) Steel Wire Grade:
- Q195: Common material for most applications.
b) Zinc Coating:
- Light (15-30 g/m2)
- Standard (40-60 g/m2): Common choice for poultry netting, offering good protection at a reasonable cost.
- Heavy (200-300 g/m2): Not typically needed for chicken netting.
c) Black Vinyl Coating: Additional protection against weather.
UV resistance varies depending on vinyl quality:
- Standard: Around 60-70% resistance, delaying sun damage.
- Premium: Up to 80-90% resistance, offering superior longevity and color retention.
- Thickness: Typically 0.3-0.5 mm, offering additional corrosion resistance and enhancing durability.
Black Vinyl Coated Chicken Wire 18 Gauge 3/4″ Opening
- Mesh Size: 3/4 inch openings
- Material: Galvanized steel wire with a black vinyl coating
- Wire Gauge: 18 gauge
- Roll Width Options: Available in widths of 4 feet and 6 feet
- Roll Length: To cover 4000 sq ft
For 4 feet wide: Approximately 1000 feet long
For 6 feet wide: Approximately 667 feet long - Coating: Weather-resistant black vinyl coating
- Weight: Varies by roll size; typically heavier due to vinyl coating
- Applications: Suitable for making poultry enclosures, garden fencing, and other mesh fencing purposes
- Installation: Installed using U-nails or staples on wooden frames or posts. Additional tools like wire cutters are required for cutting and shaping.
Vinyl Coated Chicken Wire Garden Fencing 1 inch Opening
Vinyl Coated Chicken Wire:
- Mesh Size: 1 inch (25.4 mm)
- Roll Length: 50 feet (15.24 m)
- Roll Height: 5 feet (1.52 m)
- Material: Galvanized steel wire coated with vinyl
Color: Green or black
PVC Pipe (for framing/support):
- Diameter: 3/4 inch (19.05 mm)
- Length: 36 feet
Notes:
- PVC Pipe Usage:
Frame: Framed with PVC pipes and attach the chicken wire using cable ties or wire. - Cable Ties or Wire: Secure chicken wire to PVC frame.
- PVC Connectors (Optional): Elbows and T-joints for intricate frame designs (e.g., corners).
Tools:
- Wire cutters for the chicken wire
- Saw for cutting PVC pipe
- Hammer or rubber mallet
